Starting from: $7,974 $7,474

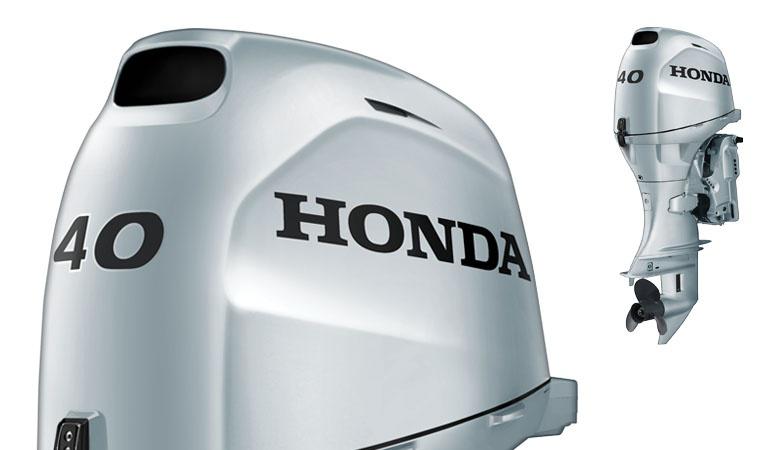

 Honda BF40

Specifications

  • Manufacturer: Honda
  • Model: BF40
  • Type: Mid-Range
  • Type: 4-Stroke SOHC; 3 Cylinders / 6 Valves
  • Displacement: 808 cc / 49.4 cubic in.
  • Bore & Stroke: 70 mm x 70 mm (2.76 x 2.76 in.)
  • Full Throttle RPM Range: 5,000-6,000 RPM
  • Propshaft Rated Horsepower (HP): 40 HP @ 5,500 RPM
  • Cooling System: Water Cooled
  • Fuel Delivery: Programmed Electronic Fuel Injection (PGM-FI)
  • Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
  • Ignition System: MicroComputer Programmed
  • Starting System: Electric
  • Exhaust: Through Prop Hub
  • Lubrication: Pressure Lubrication (Trochoid pump)
  • Recommended Oil: SAE 5W30 API service classification SJ or later
  • Oil Capacity: 2.10 L (1.85 Imp. qt) with oil filter repl.
  • Trim Range: -4° to +12°
  • Tilt Range: 63°
  • Steering Angle: 35°
  • Gear Ratio: 2.08:1
  • Gear Shift: F-N-R
  • Alternator (Manual Start): N/A
  • Alternator (Electric Start): 22 amp / 275 watts
  • Battery Charging Power: 17 amp
  • Power Tilt: N/A
  • Power Trim & Tilt: LRTC model
  • Gas Assisted Tilt: LHC model
  • Oil Pressure Alert: Standard
  • Over Rev-Limiter: Standard
  • Temperature Alert: Standard
  • Water in Fuel Alert: N/A
  • Battery Condition Alert: Standard
  • Speedometer Pickup: Standard
  • Variable Speed Trolling Kit: Optional
  • Rudder Meter Kit: N/A
  • Tilt limit Kit: N/A
  • Overall Width: 372 mm / 14.6 in.
  • Transom Height (S-Type): N/A
  • Transom Height (SCHC-Type): N/A
  • Transom Height (L-Type): 556 mm / 21.9 in.
  • Transom Height (LCHC-Type): N/A
  • Transom Height (X-Type): N/A
  • Transom Height (XX-Type): N/A
  • Propeller Type: 3-blade (Aluminum)
  • Propeller Diameter x Pitch (S-Type): N/A
  • Propeller Diameter x Pitch (L-Type): 11-1/4 x 13 in.
  • Propeller Diameter x Pitch (BF(P) Models): N/A
  • S-Type: N/A
  • SCHC-Type: N/A
  • SHGC-Type*: N/A
  • SHS-Type: N/A
  • SRC-Type: N/A
  • L-Type: N/A
  • LHC-Type*: 100 kg / 220.5 lb.
  • LHGC-Type: N/A
  • LRTC-Type*: 98 kg / 216.1 lb.
  • X-Type: N/A
  • XC-Type: N/A
  • XRTC Type: N/A
  • XX Type: N/A
